Broilers

Heavy Duty Underfired Broiler

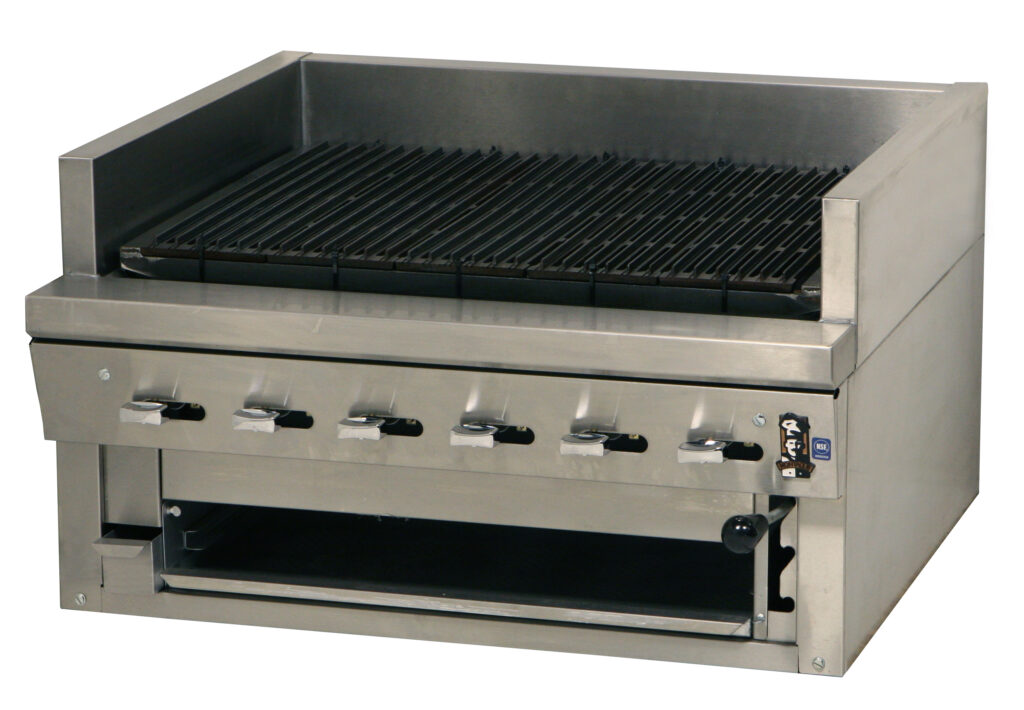

Model: UFSC 36R

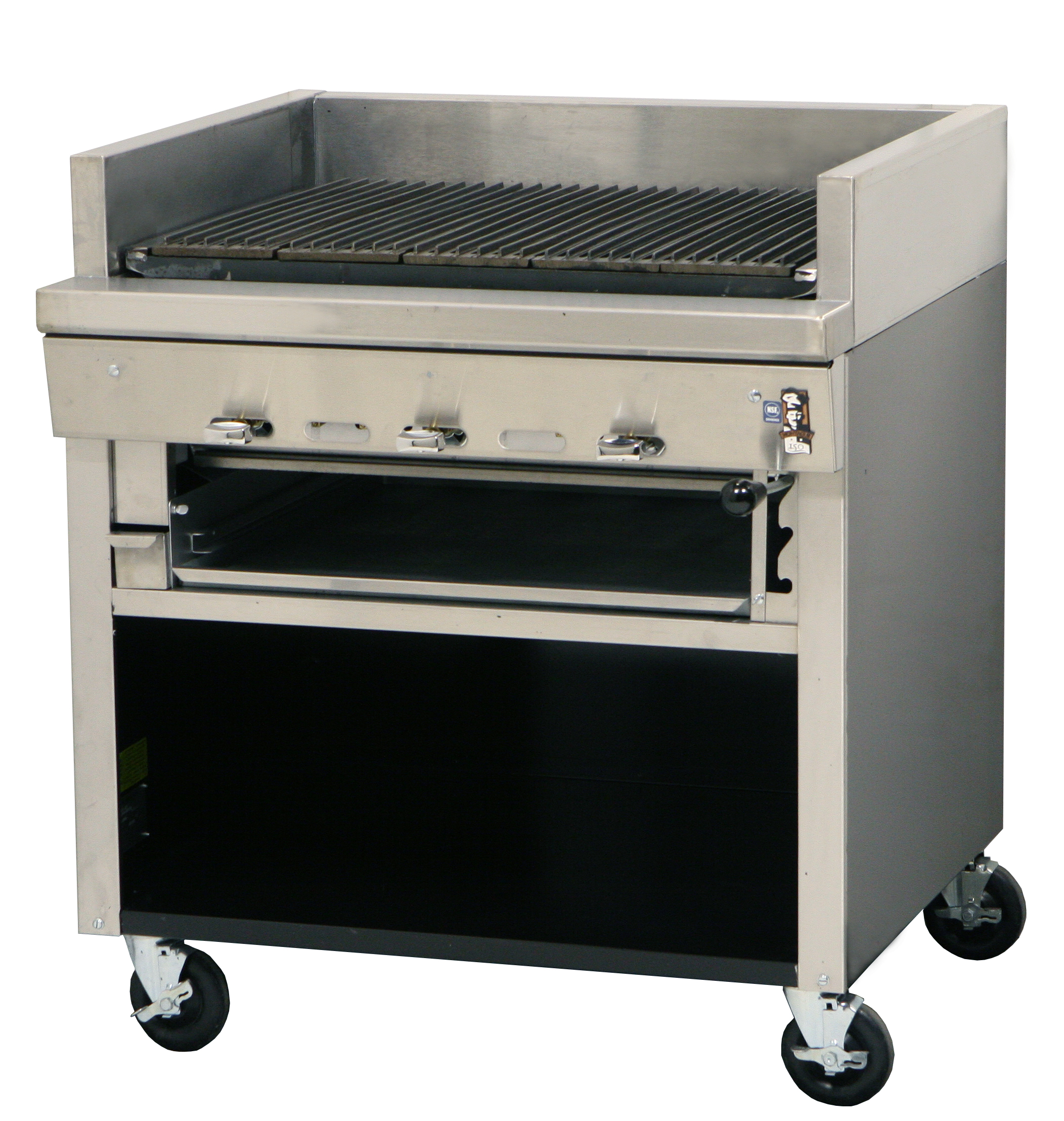

Model: UFS 36C

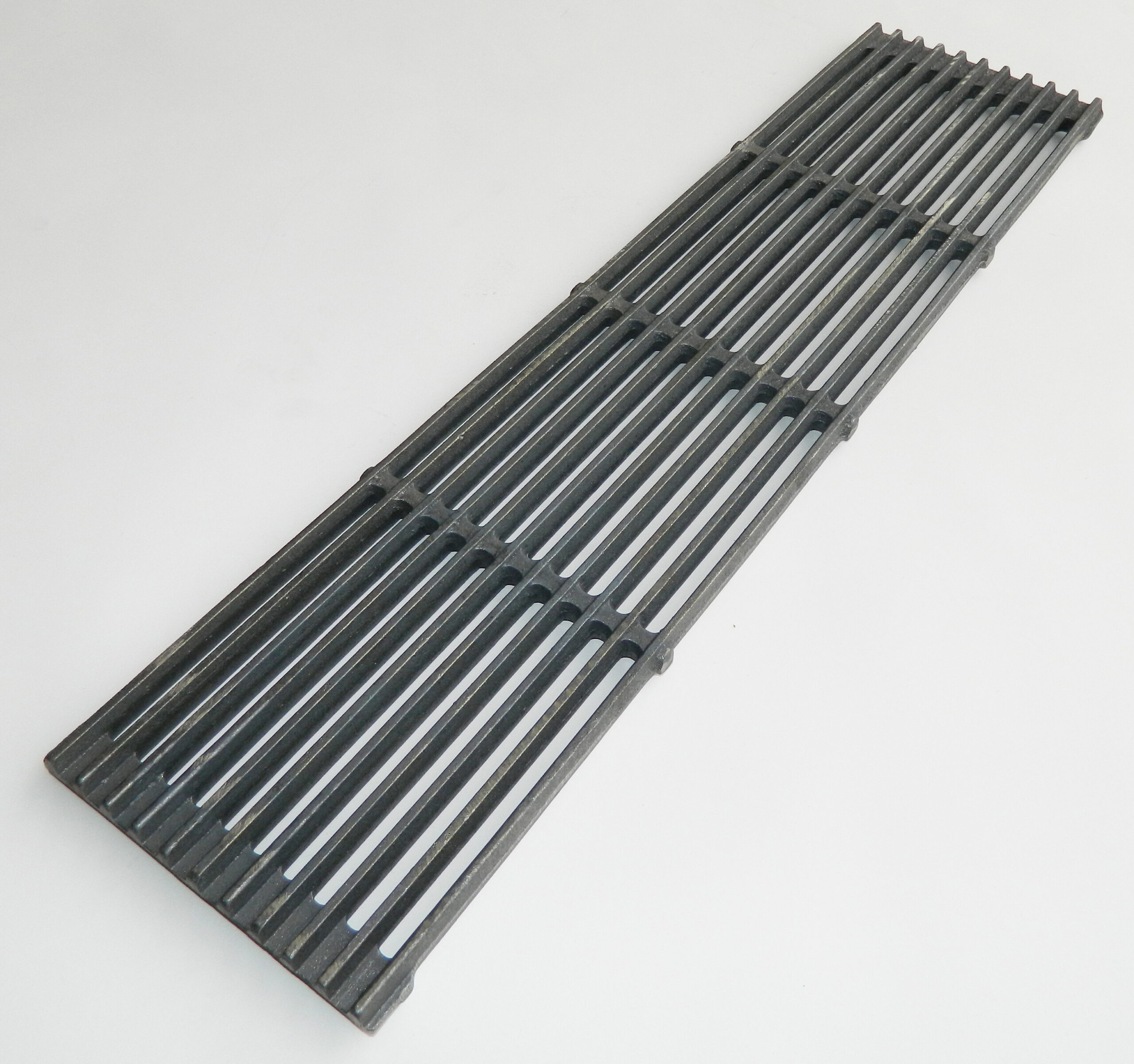

Optional Seafood Grate

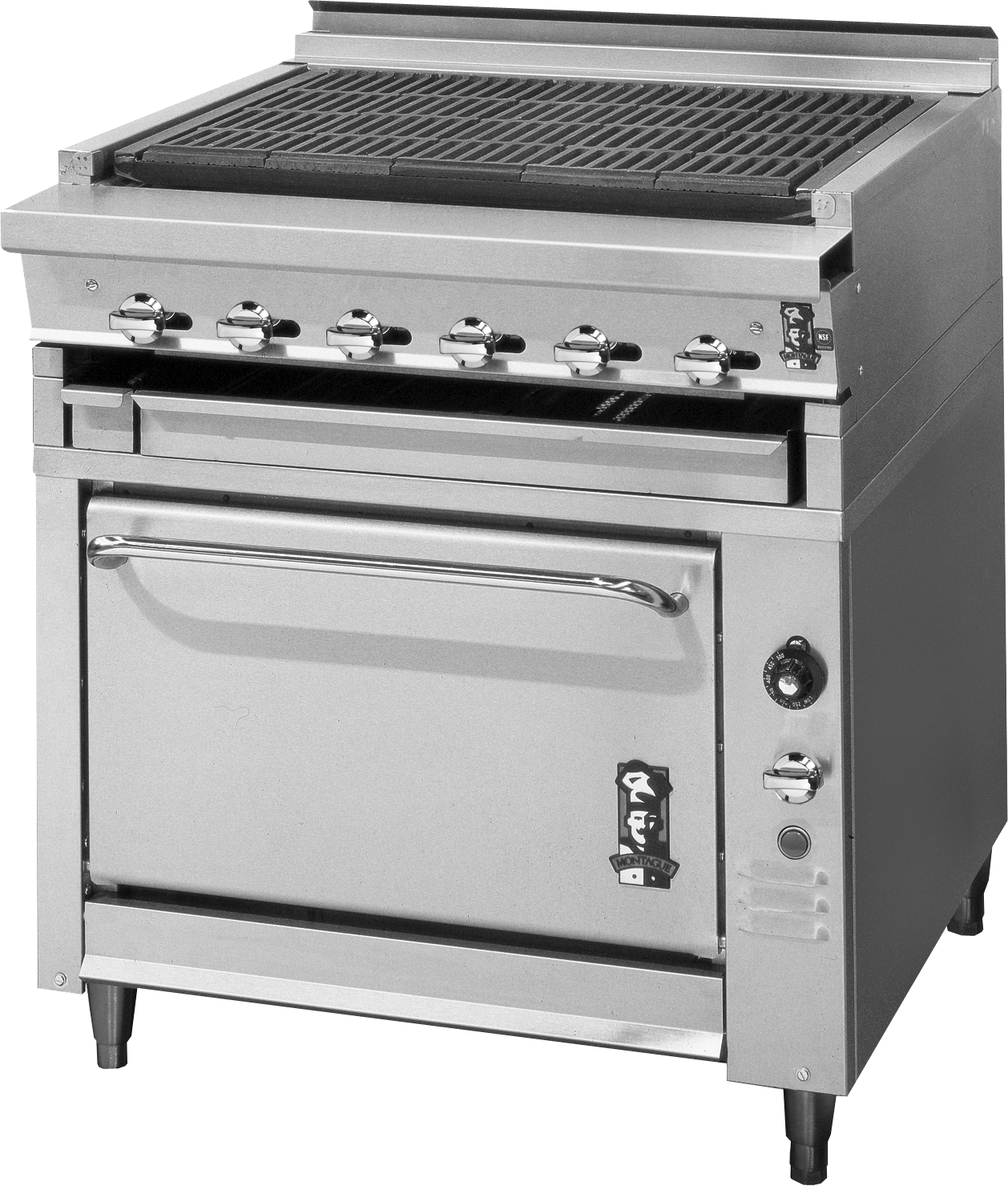

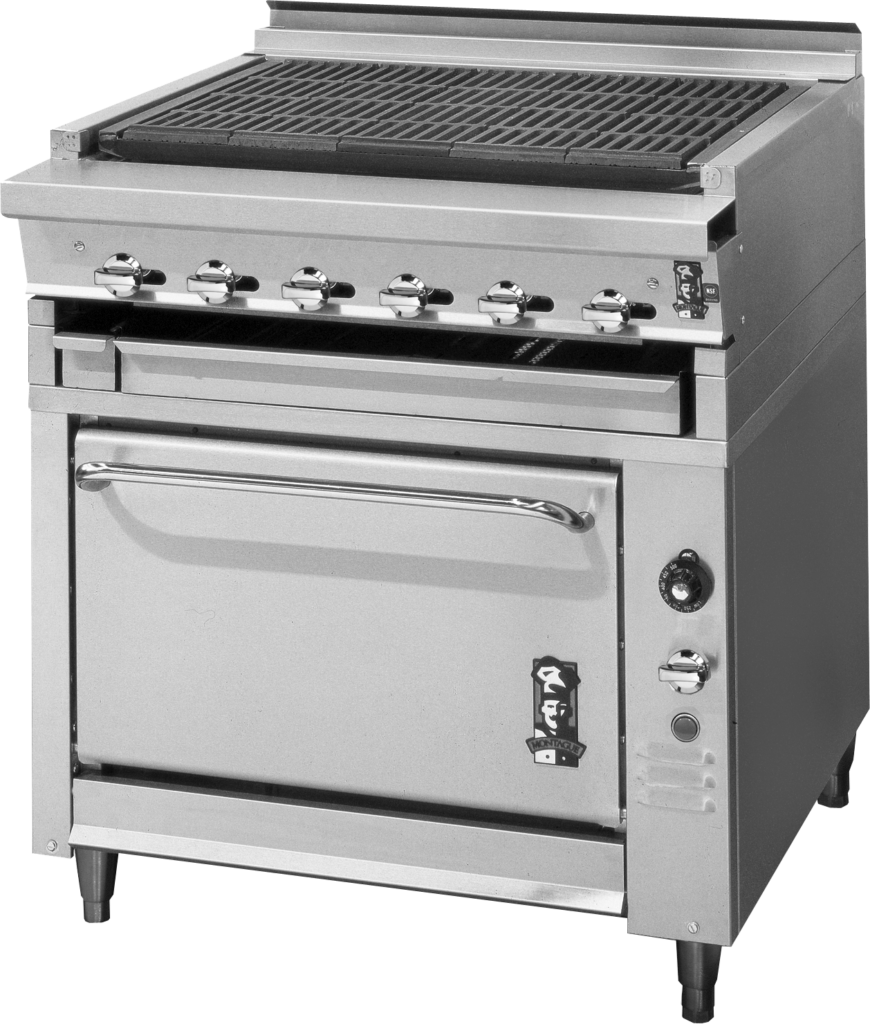

Model: 36LB/UFLC36R *42-inch height

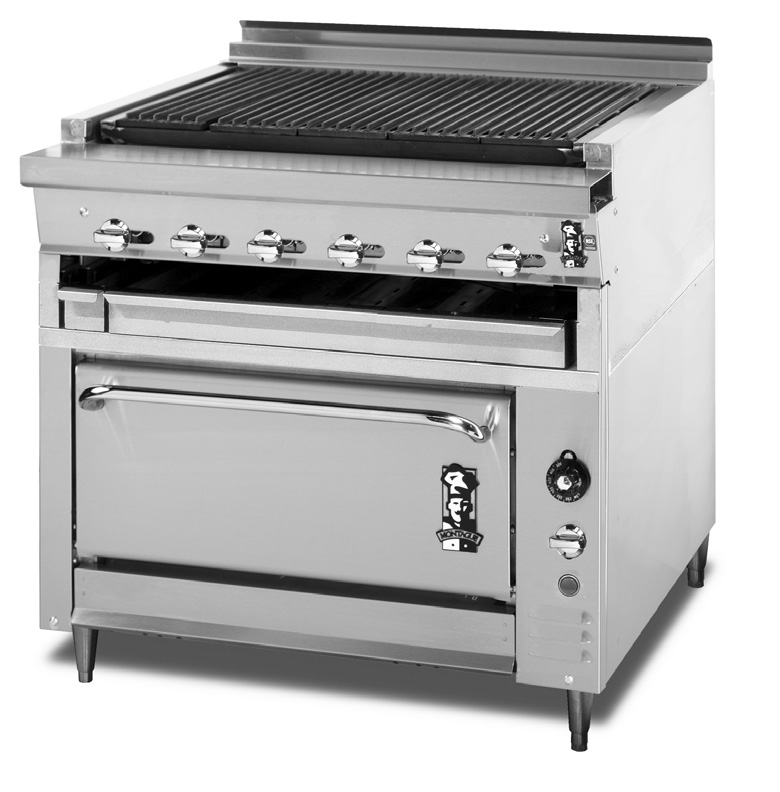

Model: 36XLB/UFLC36R *36-inch height

overview

This heavy-duty underfired broiler provides consistent temperatures, appealing grill marks, and mouthwatering flavors. Tailor yours to your operation with a wide choice of sizes and features to suit your space, menu, and workflows.

Choose from cast iron radiant burners or ceramic cast iron “H” burners
Sizes range from 18″ (45.72 cm) to 72″ (182.9 cm) wide
Available as countertop model, freestanding, or with an oven base
Optional cast iron, round rod, or seafood grates are available
The Montague Radiant Broiler enables you to change the height of the grates from flat to a 3″ (7.6 cm) slope to reduce flare-ups and increase consistency

Manuals

BUILT FOR HOW YOU WORK

Choose from powerful, high heat cast iron or stainless-steel radiant burners (19,000 BTU’s/hr.) or ceramic cast iron “H” burners (45,000 BTUs/hr.)
Each burner is controlled by an independent, high-temperature valve designed for longevity
Standard Ultra-Flow heavy-duty, double-sided/reversible cast iron grates
- Ribbed side has 1-inch (25 cm) markings with a built-in grease trough
- Flat side for broiling fish or other delicate products
Vertically adjustable cooking grates can be positioned flat or up to a 3″ (7.6 cm) slope for maximum grease drainage and reduced flare-ups
Full-width grease trough for quick transfer of excess grease into a removable container
Removable full-width debris screen under the burners
Removable full-width drip tray
Convenient temperature zones

Choose from powerful, high heat cast iron or stainless-steel radiant burners (19,000 BTU’s/hr.) or ceramic cast iron “H” burners (45,000 BTUs/hr.)
Rear manifold
Seafood grate
Round grate
Range Match* Low-Profile Counter Radiant Broilers (UFLC models)
Shallow Depth Low-Profile Counter Radiant Broilers (UFLCS models)
Range Match* Series with Cabinet Base (UF models)
Free-standing Series with Cabinet Base (UFS models)
Countertop Series (UFSC models)
Free-standing Counter Series with Modular Stand (UFSM)
Radiant Broiler with Low Boy Oven Base – 42-inch working height (136LB/UFLC)
Radiant Broiler with Extra Low Boy Oven Base – 36-inch working height (136XLB/ UFLC)

*Range Match is counter height 36″ ( 91.44 cm )

Model Description

UF-*R Radiant Style Broiler, Range Match with Cabinet Base

UFLC-*R Radiant Style Broiler, Range Match Low Profile Countertop

UFS-*R Radiant Style Broiler Free Standing with Cabinet Base

UFSC-*R Radiant Style Broiler Free Standing Countertop

UFSM-*R Radiant Style Broiler Free Standing Modular Base

136LB/UFLC** R Radiant Broiler w/Low Boy Oven Base – 42” working height

136XLB/ UFLC**R Radiant Broiler w/Extra Low Boy Oven Base – 36” working height

*Sizes available

18″ (45.72 cm) *not available on freestanding units
24″ (60.96 cm)
30″ (76.2cm)
36″ (91.44 cm)
48″ (121.92 cm)
60″ (152.4 cm)
72″ (182.88 cm)

**Broilers with oven bases, sizes 36″ (91.44 cm), 48″ (121.92 cm), 60″ (152.4 cm), 72″ (182.88 cm)

Model Description:

UF-*C Ceramic Style Underfired Broiler, Range Match w/Cabinet Base

UFS-*C Ceramic Style Underfired Broiler Range, Free Standing w/Cabinet Base

UFSC-*C Ceramic Style Underfired Broiler Range, Free Standing Countertop

UFSM-*C Ceramic Style Underfired Broiler Range, Free Standing Modular Base

*Sizes available:

24″ (60.96 cm)
30″ (76.2cm)
36″ (91.44 cm)
48″ (121.92 cm)
60″ (152.4 cm)
72″ (182.88 cm)

Range Match is counter height 36″ (91.44 cm)

View Spec Sheet
